how to migrate vb6 to vb.net (best way)

introduction:

With the advent of the Microsoft .NET platform and the large number of Windows and Web applications developed in Visual Basic, the issue of migration to VB .Net is timely. So what are the motivations for migrating to VB .NET (or C #)? Should we migrate or not your projects to VB .NET? Visual Basic is it the end of life?

1-Should we upgrade to VB .NET:
The migration to VB .Net is not an obligation, and an application that works perfectly today and meets your needs no reasons to migrate to VB .Net. Nevertheless, it may be an update or new version of your project requires you to choose between Visual Basic and Visual Basic .Net. This choice can not be done by considering several factors and assessing their advantages and disadvantages. Once the decision, we must define the strategy to achieve the migration.

1.1-benefits:
The major new VB .Net:
• Visual Basic .NET is a true object-oriented language (inheritance, polymorphism is a reality).
• Error handling is improved through structured exception handling.
• The management of multi applications is now possible.
The .NET platform:
• Improved scalability: The ADO .Net improve the scalability of your application by promoting offline and reducing the number of connections and DBMS locks. ASP Session management has been improved and can be shared among several servers in a Web farm.
• Increased performance: The Data Reader object was designed for speed of data access. ASP .Net pages are now compiled.
• Easier deployment: The deployment of your application will be made by a simple XCOPY.

2. What strategy to achieve the migration?

Three migration options are available, either completely rewrite your application in Visual Basic .NET, or migrate it totally or partially to migrate.

2.1. Rewriting your application

This option is useful if you want:
• Benefit from improved performance and increased scalability of your application (ASP .Net ADO .Net to use and helps improve)
• Migrate your application but the existing Visual Basic code does not have an equivalent in Visual Basic .NET or it is impossible to migrate.
This solution has the following disadvantages:
• No existing code reusability
• important human and financial investment

2.2. The total migration:

Advantage:
• Reuse of part of the existing code.
• Improved performance and scalability for the parties migrated.
Disadvantages:
• The migrated code may not be effective and will require adjustments.
• Some portions migrated (eg using ADO) does not benefit from the advantages of .NET
The Migrating a Visual Basic project to VB .Net
The project we're studying is an n-tier project respecting the Windows DNA architecture. It consists of an introduction to ASP layer, a layer of business objects that implement business rules and a data persistence layer using ADO. We will migrate a part of the latter layer.

1-General Considerations

1.1. Unsupported features

Some features are not supported by VB .NET and can not be migrated by the wizard:
• The OLE Container control.
• Dynamic Data Exchange (DDE).
• The DAO and RDO data Binding.
• Visual Basic controls 5.
• DHTML applications.
• The Active X Documents.
• The property pages.
Applications using these features should be left unchanged in Visual Basic 6.0 (Property pages for example) or migrating to .NET (processing documents ActiveX controls users).

1.2. Unsupported keywords

Some keywords have been removed from language.
Keyword Description

Def <type> must explicitly declare variables.
Goto / Gosub These instructions can be replaced with If or Select Case.
Gosub / Return These instructions can be replaced by the use of functions or procedures.
Option Base 0 | 1 The tables are indexed at 0.
VarPtr, ObjPtr, StrPtr These functions used to retrieve the memory address some variables are no longer used.
LSet This function allows the assignment data type is no longer

2. The upgrade strategy

It is recommended that you install your project on the machine which will be launched migration. This guarantees that the VB6 project works and that all the elements used by the project (components, controls ...) are available at the time of migration.
Moreover the migration wizard only accepts projects Visual Basic 6. So if you have earlier versions, it is recommended to migrate prior to Visual Basic 6.

The upgrade can be performed in stages, starting with the client part and the business objects, and finally the data objects. It is possible to go beyond the simple port and integrate .NET Framework improvements. Note that the migration will be easier if your application has been designed in a modular way and respects some good programming practices. We will see this in detail later.

3. The migration through practice using the migration wizard VS.Net

The migration of a project can be broken down into several steps we describe below:

1-Choosing what to migrate

It should define which application parts will be migrated by referring to the strategy presented above.

2-Preparing to Migrate Visual Basic 6 project

Corrections can be made to the Visual Basic 6 code before the passage of the upgrade wizard. It is easier to process corrections directly in Visual Basic and let the wizard perform the update instead of the do after the upgrade is complete.

3-Migration of the application via the Migration Assistant from the VS.Net

4- Correction anomalies detected by the wizard

The Assistant corrects only part of the problem; charging the developer to complete the upgrade.

5. Test the application

Once completed making level, we must achieve the regression testing to ensure that the application still has the expected behaviors.

Preparing to Migrate Visual Basic 6 project

Here are some pitfalls to avoid and correct in your Visual Basic 6 project before the completion of migration:

• Use of early bonding and explicit data conversions.

• Use the date data type to store dates.

• Use predefined constants Visual Basic and not the underlying values.

• Prevent the spread of No.

• Using indexed arrays with zeros.

• Avoid fixed-size tables and chains in the definition of typical users.

• Specify the scope of a parameter explicitly. In Visual Basic parameters are passed by reference by default, whereas in .NET they are passed by value.

This step presents a number of recommendations but is not mandatory. To help you in checking your Visual Basic Code Microsoft offers a free download tool "CodeAdvisor".

 This tool is available at the following address:

https://www.microsoft.com/en-us/download/details.aspx?id=1222

The migration of the application via the Migration Assistant

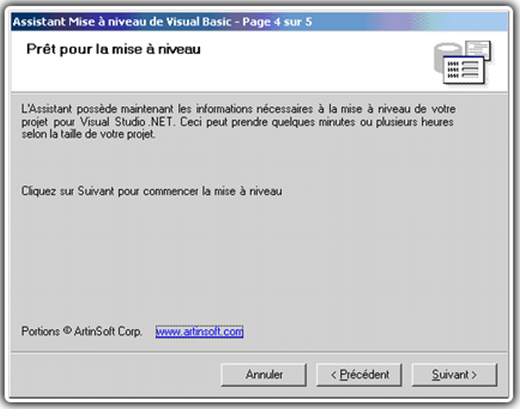

To migrate our Visual Basic project we will use the migration wizard provided by Microsoft. For that we open our .vbp project with Visual Studio .NET IDE. The wizard proposes therefore to upgrade our project.

We then choisissions the type of project, in this case it is an ActiveX DLL Server type.

We select the location where the new project will be stored.

Finally we launch the migration of our project.

Once the upgrade is complete, an updated report is before us.

This report presents the errors and warnings detected by the tool updates grouped by file. For each error, a detailed description indicates why the code is a problem and how to correct it.

This report is complemented by four types of comments directly integrated into the application code:

• UPGRADE_ISSUE: Refers to lines that keep the code to compile.

• UPGRADE_TODO: Refers to lines that compile but can, at runtime, generate errors.

• UPGRADE_WARNING: Refers to lines that compile and can be cause errors at runtime.

• UPGRADE_NOTE: Refers to the code that compiles for which the transition to VB .Net can cause side effects.

Let us now study the code generated by the upgrade wizard VB .NET and look at the changes.

• Generating a VB .NET class that contains the methods of our previous Visual Basic class.

• Changing data types. The Integer type was replaced by Short. The Variant by Object.

• Changing the call to functions that must now include parentheses.

• Changing certain constants used. E.g. adCmdStoredProc option has been replaced by ADODB.CommandTypeEnum.adCmdStoredProc.

Correction of anomalies detected by the wizard

Despite the changes made by the wizard, several major anomalies were detected but not corrected. We will study two and make the appropriate corrections.

The construction management chain

I got used to serve me as COM + construction chain to define a path to a UDL file that determines the connection string to the database. Upon activation of a chain this component is recovered and used in all DBMS access.

example:

Implements COMSVCSLib.IObjectConstruct

Private sConstructString As String



Private Sub IObjectConstruct_Construct(ByVal pCtorObj As Object)



        Const NomFonction = "IObjectConstruct_Construct"



        Dim sConstruct As IObjectConstructString

        Set sConstruct = pCtorObj

        sConstructString = sConstruct.ConstructString



End Sub

To migrate this code, you have my class inherits from the ServicedComponent class of the System.EnterpriseServices namespace. This class provides access to COM + services. Finally, it should override the Construct method. The migrated code becomes:

Public Class DataAccess

Inherits System.EnterpriseServices.ServicedComponent

        Private sConstructString As String

        Private Const NomModule As String = "DataClient"

        Protected Overrides Sub Construct(ByVal constructString As String)

            sConstructString = constructString

        End Sub 'Construct



Writing to the event log

If an anomaly is loguée an error in the event log. The correction is to seek the method to write to the event log. The WriteEntry method LogEvent class of the System.Diagnostics namespace meets this need.

'UPGRADE_ISSUE: La constante vbLogToNT n'a pas été mise à niveau.

'Cliquez ici : 'ms-help://MS.VSCC.2003/commoner/redir/redirect.htm?keyword="vbup2070"'

'UPGRADE_ISSUE: App méthode App.StartLogging - Mise à niveau non effectuée

'Cliquez ici : 'ms-help://MS.VSCC.2003/commoner/redir/redirect.htm?keyword="vbup2069"'

App.StartLogging("", vbLogToNT)

'UPGRADE_ISSUE: La constante vbLogEventTypeError n'a pas été mise à niveau.

'Cliquez ici : 'ms-help://MS.VSCC.2003/commoner/redir/redirect.htm?keyword="vbup2070"'

'UPGRADE_ISSUE: App méthode App.LogEvent - Mise à niveau non effectuée

'Cliquez ici : 'ms-help://MS.VSCC.2003/commoner/redir/redirect.htm?keyword="vbup2069"'

App.LogEvent(Err.Source & " " & Err.Description, vbLogEventTypeError)

The manually migrated code becomes:

Imports System.Diagnostics.EventLog
'...
Dim myLog As New EventLog("Application", System.Environment.MachineName, "Classe DataAccess")
myLog.WriteEntry(Err.Source & " " & Err.Description, EventLogEntryType.Error)


Transaction management
Our class is transactional and we must preserve this property.
To do this is to use the mechanisms of declarative transactions proposed by
 the System.EnterprisesServices ( ServiceComponents) class namespace.

On the one hand we will define in class header attribute "TransactionAttribute" to define
the transactional properties of the class.
Furthermore we will use the attribute "AutoComplete" about each method to automatically
in the SetComplete method on success of the transaction is SetAbort on error.



Here's the code before and after migration:

Function CreerClient(…)


Dim ctx As ObjectContext
'...
        Set ctx = GetObjectContext
        If Not ctx Is Nothing Then
       ctx.SetComplete
       Set ctx = Nothing
        End If
Imports System.EnterpriseServices

<Transaction(TransactionOption.Required)> _
        Public Class DataAccess
    Inherits System.EnterpriseServices.ServicedComponent

        <AutoComplete()> Function CreerClient(ByVal sSiret As String, ByVal sNomClient As String, _
               ByVal iNumero As Short, _
               ByVal sRue As String, _
               ByVal sCodePostal As String, _
               ByVal sCommune As String, _
               ByRef vIdentifiant As Object) As Short



Migration is now complete (see Comparison migrated codes),
 it remains only perform regression
 tests.
We could continue incorporating new .NET functionality
(replacing COM components in .NET components, ADO, ADO .Net passage, change in the error
 handling ...).








final result :

Vb6 Code:


Option Explicit

Private Const NomModule = "DataClient"

Function CreerClient(ByVal sSiret As String, _
        ByVal sNomClient As String, _
        ByVal iNumero As Integer, _
        ByVal sRue As String, _
        ByVal sCodePostal As String, _
        ByVal sCommune As String, _
        ByRef vIdentifiant As Variant) As Integer

        On Error GoTo GestionErreur

        Dim oConnexion As ADODB.Connection
        Dim oRecordset As ADODB.Recordset
        Dim oCommand As ADODB.Command
        Dim ctx As ObjectContext

        Dim iCodeRetour As Integer 'contient le code retour de la proc stock

        Set oCommand = New ADODB.Command

        With oCommand
               .Parameters.Append .CreateParameter("@Retour", adInteger, _
               adParamReturnValue)
               '...
        End With

        Set oConnexion = New ADODB.Connection
        oConnexion.Open sConstructString

        oConnexion.BeginTrans
        With oCommand
                .CommandType = adCmdStoredProc
                .CommandText = "Insert_Client"
                Set .ActiveConnection = oConnexion
        End With

        oCommand.Execute , , adExecuteNoRecords

        'recuperation du code retour de la procédure stockée
        vIdentifiant = oCommand.Parameters("@Retour").Value

        Set ctx = GetObjectContext
        If Not ctx Is Nothing Then
           ctx.SetComplete
           Set ctx = Nothing
        End If





Code vb.net:




Option Strict Off
Option Explicit On
Imports System.Diagnostics.EventLog
Imports System.EnterpriseServices

<Transaction(TransactionOption.Required)> _
Public Class DataAccess
Inherits System.EnterpriseServices.ServicedComponent
        Private Const NomModule As String = "DataClient"

        <AutoComplete()> _
        Function CreerClient(ByVal sSiret As String, ByVal sNomClient As String,  _
               ByVal iNumero As Short, ByVal sRue As String, ByVal sCodePostal As String, _
               ByVal sCommune As String, ByRef vIdentifiant As Object) As Short
               On Error GoTo GestionErreur

               Dim oConnexion As ADODB.Connection
               Dim oRecordset As ADODB.Recordset
               Dim oCommand As ADODB.Command

               Dim iCodeRetour As Short


               oCommand = New ADODB.Command

               With oCommand
                    .Parameters.Append(.CreateParameter("@Retour",  _
                            ADODB.DataTypeEnum.adInteger, _
                            ADODB.ParameterDirectionEnum.adParamReturnValue))
                        '...
            End With

               oConnexion = New ADODB.Connection
               oConnexion.Open(sConstructString)

               With oCommand
                    .CommandType = ADODB.CommandTypeEnum.adCmdStoredProc
                    .CommandText = "Insert_Client"
                    .ActiveConnection = oConnexion
               End With

                   oCommand.Execute(, , ADODB.ExecuteOptionEnum.adExecuteNoRecords)

                   vIdentifiant = oCommand.Parameters("@Retour").Value

                   If (Not oRecordset Is Nothing) Then
                      If oRecordset.State = ADODB.ObjectStateEnum.adStateOpen Then _
                         oRecordset.Close()
                      End If

                   If (Not oConnexion Is Nothing) Then
                      If oConnexion.State = ADODB.ObjectStateEnum.adStateOpen Then  _
                         oConnexion.Close()
                      End If
                   End If
